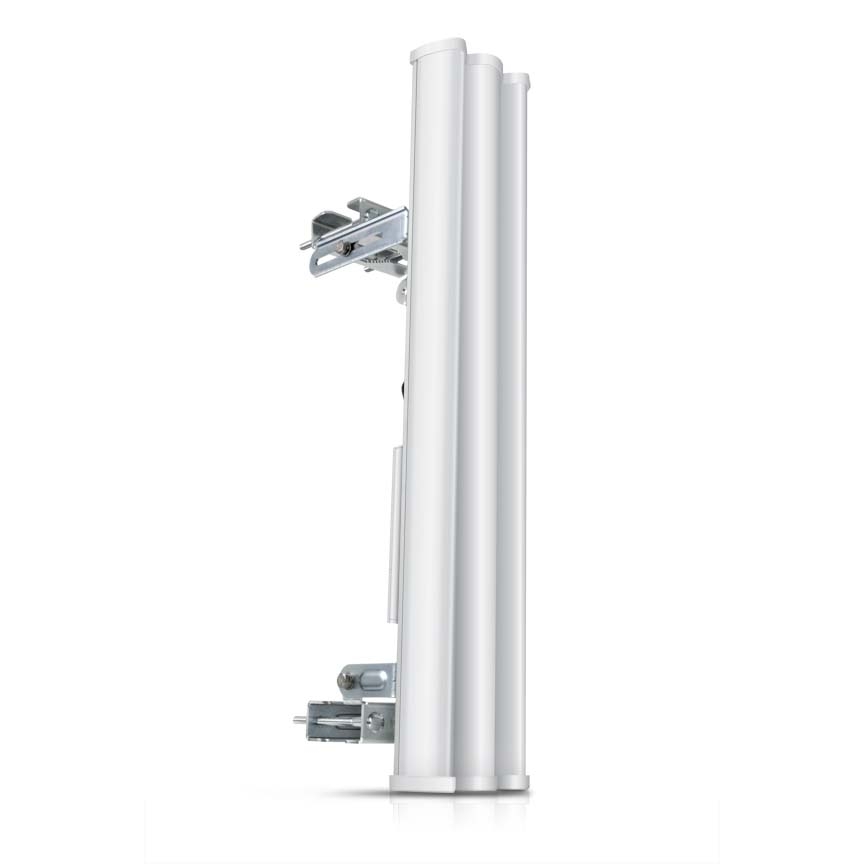

Ubiquiti Air Max 19dBi 5GHz Sector Antenna (AM-5G19-120)

Ubiquiti Air Max 5GHz Sector Antenna, Dual Polarization, MIMO, 19dBi, 120 degrees beamwidth, recommended for Ubiquiti Rocket M Platform.

Features:

Patent-pending next-generation technology achieves gain, cross-pol isolation, and beamshaping characteristics rivaling the highest quality cellular carrier basestation antennas in the world. Instantly pair with Rocket M5 to create a powerful AirMax 2×2 MIMO PtMP BaseStation. Rocket mount and weatherproof RF jumpers included.
Rocket M and AirMax BaseStation/Rocket Antennas have been designed to seamlessly work together. Installing Rocket M on AirMax BaseStation/Rocket Antennas requires no special tools, you simply snap it into place with the mount provided with the Antennas.

Specification:

AM-5G19-120

Dimensions

700 x 135 x 73 mm

(27.56 x 5.32 x 2.87″)

Weight (Mount Included)

5.9 kg

(13 lbs)

Frequency

5.15 – 5.85 GHz

Gain

18.6 – 19.1 dBi

HPOL Beamwidth

123° (6 dB)

VPOL Beamwidth

123° (6 dB)

Elevation Beamwidth

4°

Electrical Downtilt

2°

Max. VSWR

1.5:1

Wind Survivability

200 km/h

(125 mph)

Wind Loading

137.9 N @ 200 km/h

(31 lbf @ 125 mph)

Polarization

Dual Linear

Cross-Pol Isolation

28 dB Min.

ETSI Specification

EN 302 326 DN2

Mounting

Universal Pole Mount, Rocket Bracket, and Weatherproof RF Jumpers Included
